Mirroring Rooms - Concepts

The Mirror Room command provides a method of duplicating Rooms about a user-specified mirror line. The mirror line is specified in Plan View as a horizontal line of any orientation and will impact all currently unlocked Objects.

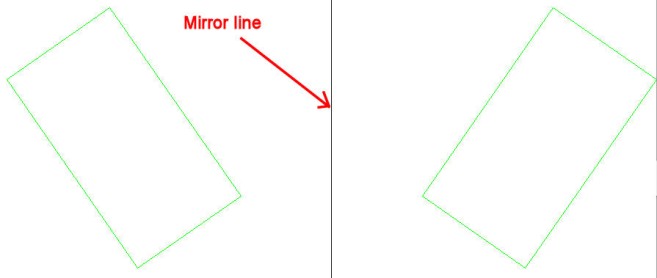

The Mirror Room command allows for selection of a Single Room at a time. Each Room selected will be mirrored about the specified mirror line using the same incidence angle on both sides.
